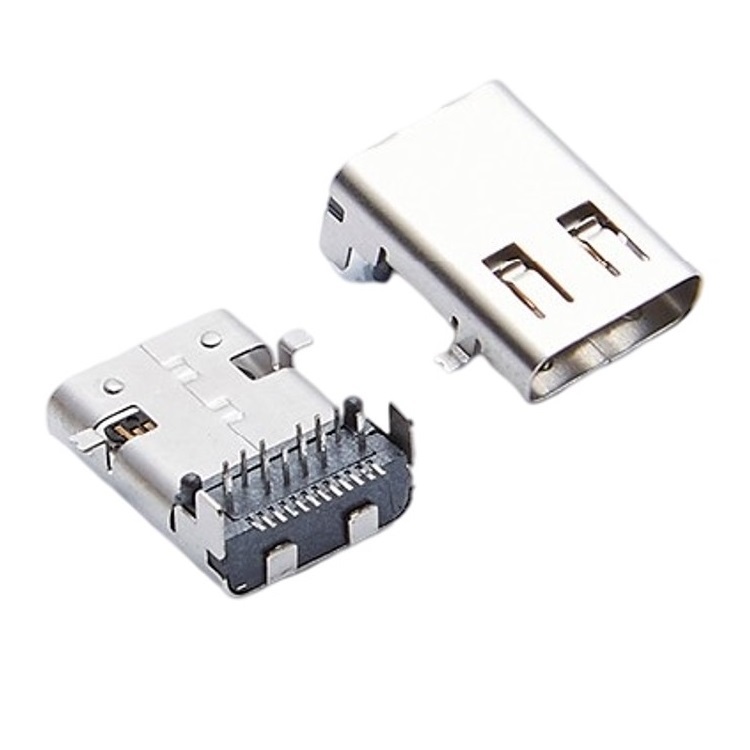

品名：Type c USB插座TYPE C連接器

USB Type C母座技術參數：

1.額定負荷: DC 30V 60V  1A  3A

2.接觸電阻: ≤50mΩ

3.絕緣阻抗: ≥100mΩ DC250V

4.耐焊溫度: 250℃＋5℃

5.使用濕度: ≤85%RH

6.插拔壽命:10,000 Cycles

7.插拔力:2-20N

8.品牌 科斯達  KOSOD  KSDKG

Product name: Type C USB Jack connector Type c connector

Technical parameters of USB Type C female seat:

1. Rated load: DC 30V 60V 1A 3A

2. Contact resistance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC250V

4. Soldering resistance temperature: 250℃＋5℃

5. Operating humidity: ≤85%RH

6. Plug life: 10,000 Cycles

7. Insertion and extraction force: 2-20N

8. Brand  KOSOD  KSDKG
