復位按鈕開關 /復位按鍵開關 /復位檢測開關技術(shù)指標
1.定負荷: DC 12V 30V  0.3A  0.5A
2. 接觸阻抗: ≤50mΩ
3. 絕緣阻抗: ≥100mΩ DC500V
3. 耐焊溫度: 250±5°5s
5. 使用壽命: 10,000 cycles
6. 使用溫度: -25 ℃ to 80 ℃
7. 使用濕度: ≤85% RH
7. 操作力 : 160gf  可訂做
9.功能電路:復位常開/復位常閉
10.品牌：科斯達  KSDKG
11.應用：汽車電器、工控設備、數(shù)碼產(chǎn)品、安防、電腦、通訊產(chǎn)品、家用電器、智能交通等。

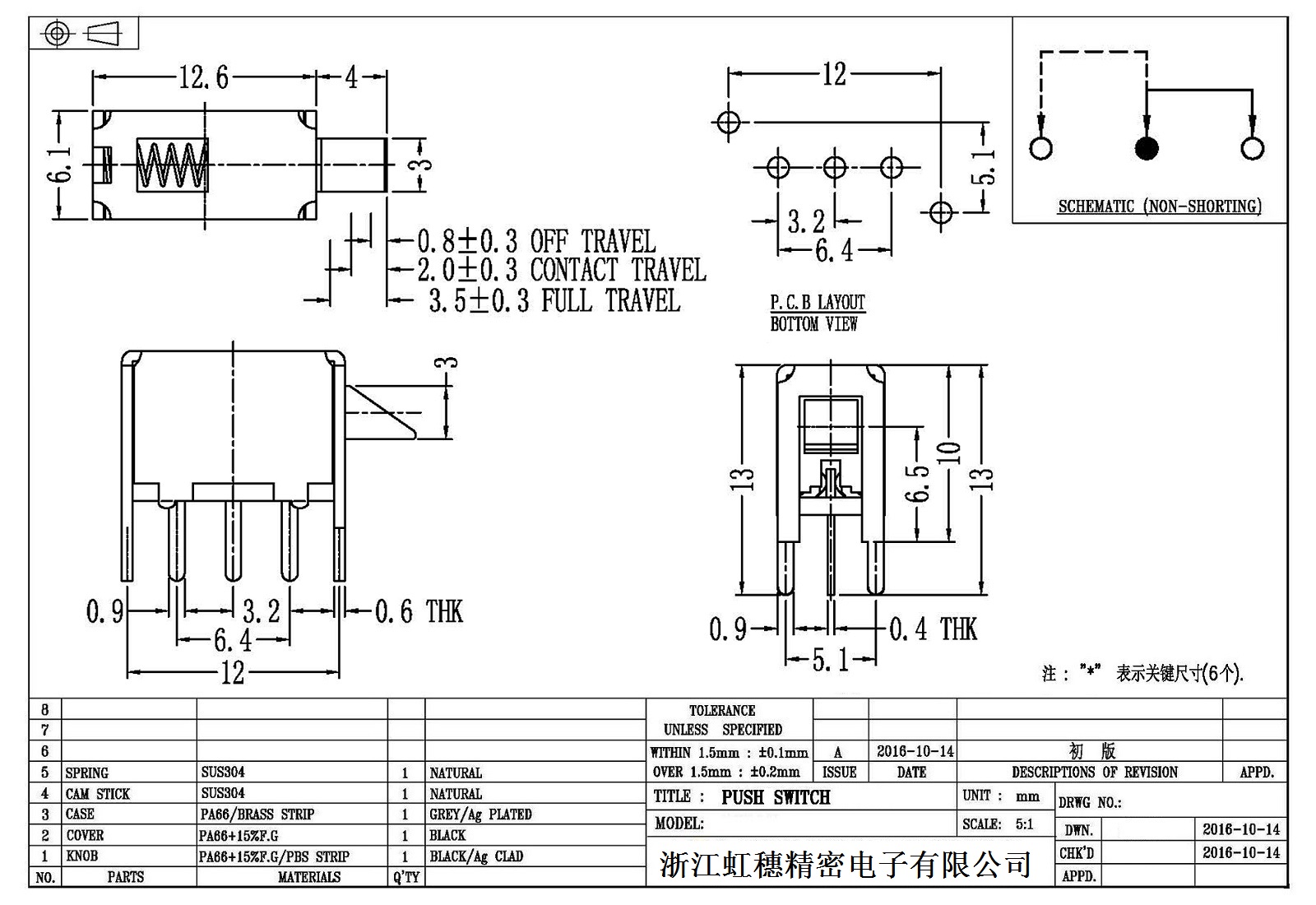

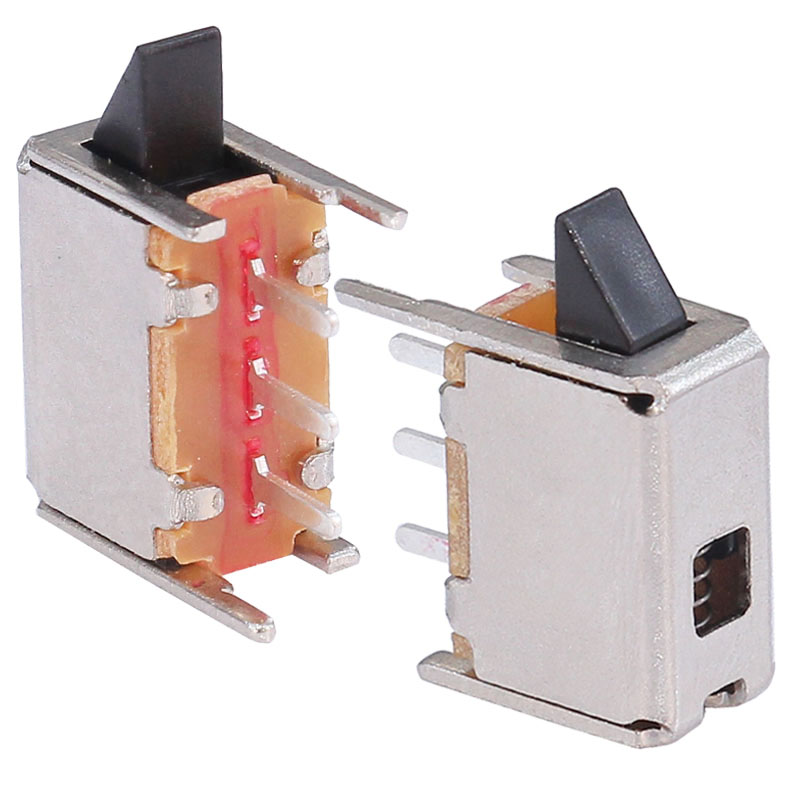

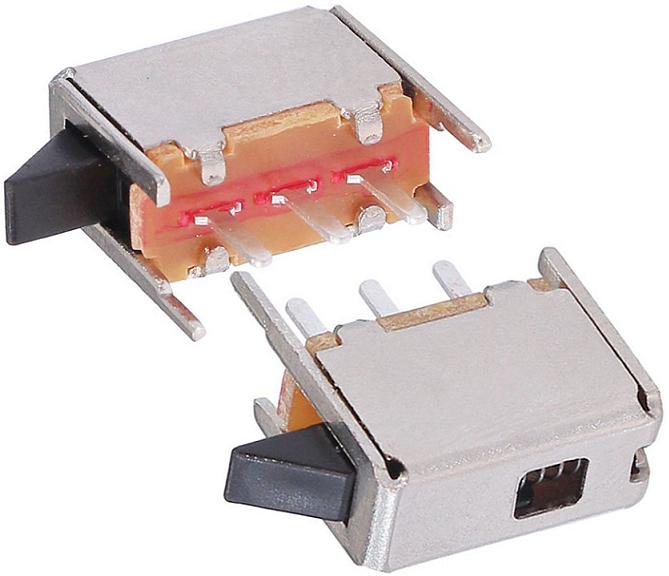

Reset Puhs Button Switch/Reset Button Switch/DetecTion Switch

1. Constant load: DC 12V 30V 0.3A 0.5A
2. Contact impedance: ≤50mΩ
3. Insulation resistance: ≥100mΩ DC500V
3. Soldering resistance temperature: 250±5°5s
5. Service life: 10,000 cycles
6. Operating temperature: -25 ℃ to 80 ℃
7. Operating humidity: ≤85% RH
7. Operating force: 160gf can be customized
9. Functional circuit: reset normally open/reset normally closed
10. Brand: Kosod Switch  KSDKG
11. Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
