自鎖開關技術參數：

1. 額定負荷: DC 30V  50V  0.3A  0.5A

2. 接觸阻抗: ≤100mΩ

3. 絕緣阻抗: DC 250V ≥100mΩ

4. 耐焊溫度: 250±5° 5s

5. 使用壽命: 100,000 cycles

6. 使用溫度: -25 ℃ to 80 ℃

7. 使用濕度: ≤85% RH

8. 操作力: 240gf ±80gf

9.操作力:240±80 gf

10..功能選擇:自鎖/無鎖

應用：汽車電器、安防產品、電子玩具、電腦周邊產品、家用電器、智能交通等。

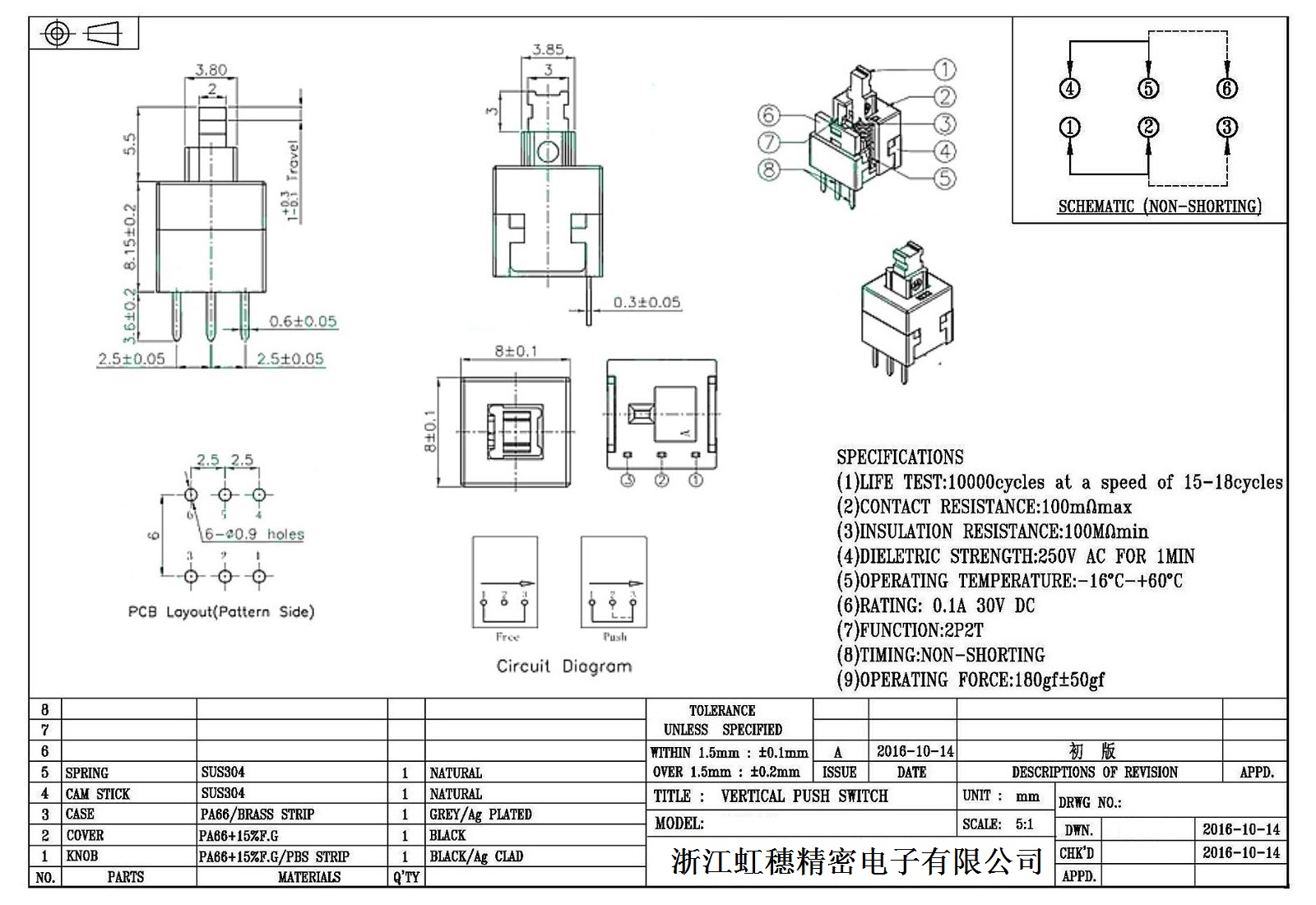

Button Self-locking switch technical parameters:

1. Rated load: DC 30V  50V  0.3A  0.5A

2. Contact impedance: ≤100mΩ

3. Insulation resistance: DC 250V ≥100mΩ

4. Soldering resistance temperature: 250±5° 5s

5. Service life: 100,000 cycles

6. Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 240gf ±80gf

9.Operating force: 240±80 gf

10.Function selection: self-locking/non-locking

Application: automotive electrical appliances, security products, electronic toys, computer peripheral products, household appliances, intelligent transportation, etc.
